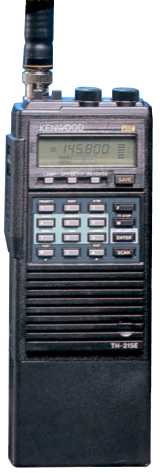

| Type: | Amateur VHF transceiver |
| Frequency range: | 144-146 MHz |
| Mode: | FM |
| RF Power output: | Hi: Max 5 W (depending on voltage) Lo: 0.5 W |
| Sensitivity: | N/A |
| Selectivity: | N/A |
| Image rejection: | N/A |
| Voltage: | 6.3-16 VDC |
| Current drain: | Rx: 11-100 mA Tx: Max 1.7 A |
| Impedance: | 50 ohms, BNC |
| Dimensions (W*H*D): | 67*173*37 mm |
| Weight: | 540 gr (with PB-2 and antenna) |
| Manufactured: | 1987-19xx |
| Other: | |
| Related documents: |
