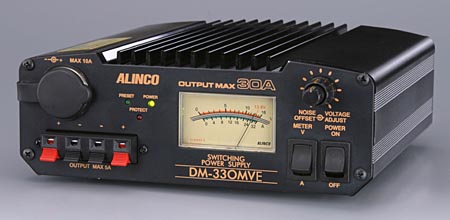

DM-330MVE

 POWER SUPPLIES OF THE NEXT GENERATION, ENGINEERED WITH ALINCO'S FINEST COMMUNICATION TECHNOLOGY AND PHILOSOPHY



Specifications:


• Input voltage: AC120VAC(MVT) / 220VAC(MVE/MVZ)

  Output voltage : 5 to 15VDC variable

  Output voltage variation: less than 2%

  Protection: short-circuit, Automatic current limiting over 32A(MVT/MVZ), 30A (MVE), over-temperature

  Output current: MVT/MVZ 32A(max), 30A(continuous)
                        MVE         30A(max), 25A(continuous)
  Ripple: less than 15mVp-p at rated load

  Fuse: 8A

  Meter: single volt/current meter, back-lit

  Size: MVT/MVZ 175(w) x 67(h) x 165(d) mm
         MVE         190(w) x 69(h) x 181(d) mm

  Weight: MVT/MVZ approx. 2 Kg    MVE approx. 2.3Kg
